Introduction

This is an overview of how telemetry data is collected, how it is transmitted and recorded, and how visualizations can be obtained using Grafana.

Collecting data

We can collect telemetry data from possibly multiple sources. Right now, the main source of timing information is the Github Actions job metadata, which we obtain using the Github Actions REST API. These data contain jobs, which generally correspond to calls to reusable workflows from our shared-workflows repository. They also itemize each step within any given workflow.

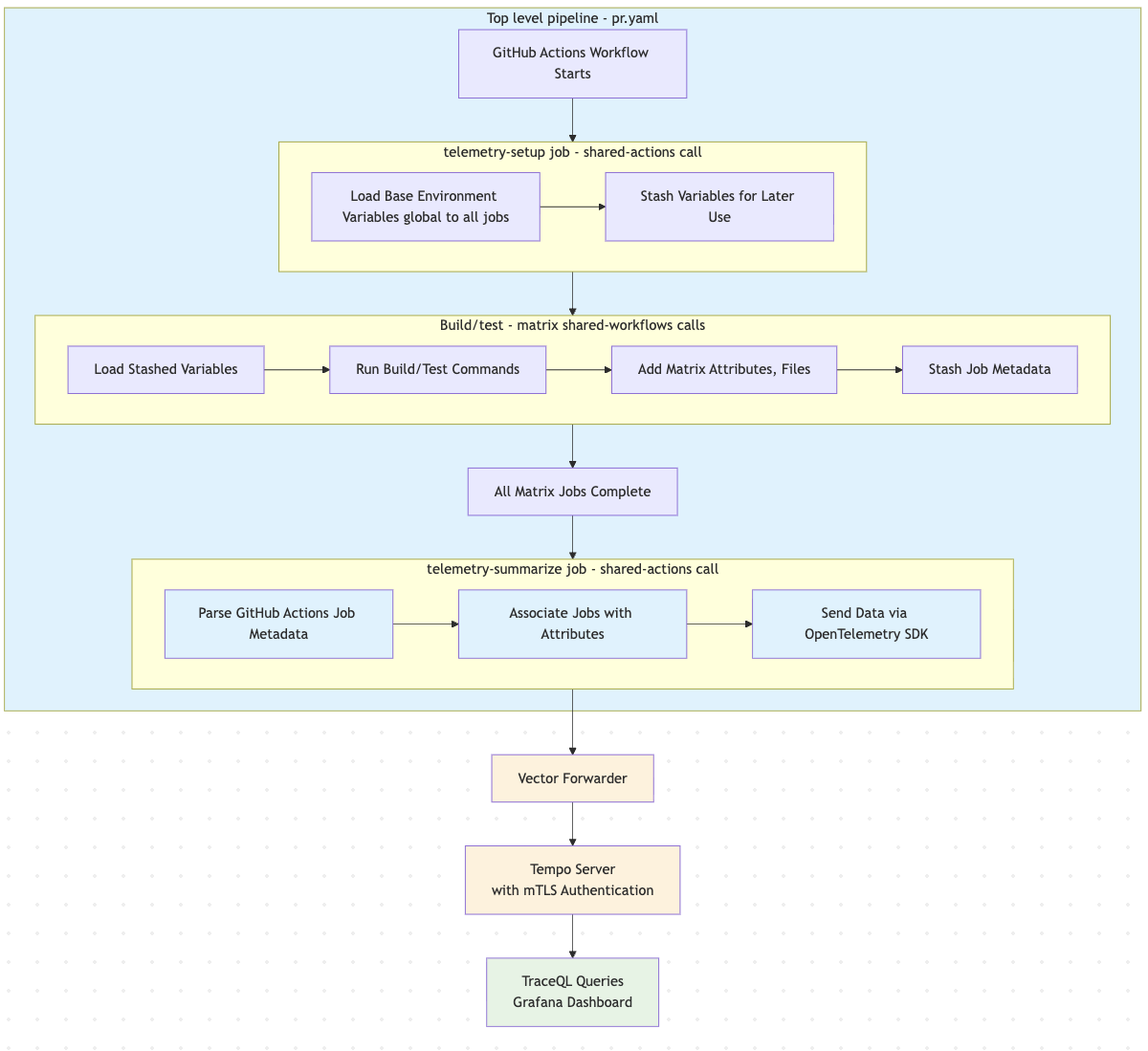

The general implementation for telemetry is as follows:

  1. Creating initial variables that get loaded
  2. add metadata in shared-workflows using OTEL_ATTRIBUTES, run workflow, stash variables to collect in final job
  3. On a self-hosted node, parse Github Actions job metadata, and associate jobs with attributes passed in from step 2). Send data to Tempo via a FluentBit agent that is also used to aggregate logs.

Steps 1 and 3 happen as jobs in the “top-level repository” - the workflow that initiates all subsequent workflows.

Code changes for projects to add telemetry

These are the general steps necessary to add telemetry to a repository that does not currently have it. This does not describe changes to shared-workflows as implementation details. In the top-level workflow, such as cudf/.github/workflows/pr.yaml:

  1. Add a job for telemetry-setup, and add that job name to the pr-builder needs collection.
jobs:
  # Please keep pr-builder as the top job here
  pr-builder:
    needs:
      - check-nightly-ci
      - changed-files

      ... <other job names> ...

      - telemetry-setup
  telemetry-setup:
    continue-on-error: true
    runs-on: ubuntu-latest
    env:
      OTEL_SERVICE_NAME: 'pr-cudf'
    steps:
      - name: Telemetry setup
        if: ${{ vars.TELEMETRY_ENABLED == 'true' }}
        uses: rapidsai/shared-actions/telemetry-dispatch-stash-base-env-vars@main
  1. Add telemetry-setup as a needs entry for all jobs at the top of the tree. The purpose is to communicate telemetry variables that any job may use - even the checks.yaml job. needs that generally catch the required jobs are:
  • checks
  • changed-files
  • devcontainer
  1. Add an entry to skip the final job, ignored_pr_jobs:
  checks:
    secrets: inherit
    needs: telemetry-setup
    uses: rapidsai/shared-workflows/.github/workflows/checks.yaml@branch-25.02
    with:
      enable_check_generated_files: false
      ignored_pr_jobs: "telemetry-summarize"

Syntax for the ignored_pr_jobs is space-separated within the quotes.

  1. Run the parsing and submission script job as the final job - after pr-builder:
  telemetry-summarize:
    # This job must use a self-hosted runner to record telemetry traces.
    runs-on: linux-amd64-cpu4
    needs: pr-builder
    if: ${{ vars.TELEMETRY_ENABLED == 'true' && !cancelled() }}
    continue-on-error: true
    steps:
      - name: Telemetry summarize
        uses: rapidsai/shared-actions/telemetry-dispatch-summarize@main

NOTE: pay special attention to the runs-on entry. This is what dictates that the job runs on a self-hosted runner, which is necessary for network access control.

Implementation details

The “meat” implementation of telemetry lives primarily in the shared-actions repository. As the middle layer, the reusable workflows in the shared-workflows repo download the stashed environment variables from the top-level telemetry-setup, load them in the local worker’s environment, run the command, and stash possible variables of interest, which capture metadata for that particular job. You should not generally need to change shared-actions or shared-workflows when maintaining other RAPIDS repositories. This section is only necessary for someone looking to change or improve something like:

  • Adding new metadata to associate with a job
  • Adding telemetry from new sources, such as sccache statistics or build logs
  • fixing one or more of what is surely multitudinous bugs

Shared-actions

Shared-actions use a pattern we call “dispatch actions,” which is broadly described as running an action that clones the shared-actions repo, which enables referring to local files in the clone. Folders at the top level in the shared-actions repo that start with telemetry-dispatch are all dispatch actions.

Most of these scripts start with the load-then-clone action, which downloads the initial file that contains the basic environment variables that should be propagated. The main exception to this is telemetry-dispatch-stash-base-env-vars which is used to populate the basic environment variable file in the first place. Passing the environment variable file is used instead of parameters to save on lots of bloat.

The ability to refer to local files is employed in the telemetry-impls/summarize action, where a python file is used to parse and send OpenTelemetry data with the OpenTelemetry Python SDK. If some value here seems like it’s magically coming from nowhere, it is probably being passed in an environment variable file.

Shared-workflows

At this level, we load the base environment variables and add our own, then run our process. The environment variables that we load ensures that if any build tool natively supports OpenTelemetry, it has the necessary information to send that data (job needs to be on a self-hosted runner)

jobs:
  build:
    steps:
      - name: Telemetry setup
        uses: rapidsai/shared-actions/telemetry-dispatch-setup@main
        continue-on-error: true
        if: ${{ vars.TELEMETRY_ENABLED == 'true' }}
        with:
            extra_attributes: "rapids.operation=build-cpp,rapids.package_type=conda,rapids.cuda=${{ matrix.CUDA_VER }},rapids.py=${{ matrix.PY_VER }},rapids.arch=${{ matrix.ARCH }},rapids.linux=${{ matrix.LINUX_VER }}"

Passing in the extra_attributes parameter appends these comma-separated key=value pairs to the OTEL_RESOURCE_ATTRIBUTES environment variable. This is the way that we associate matrix values, such as CUDA version, architecture, and python version with a particular job.

As implemented today, the telemetry-dispatch-setup action uploads an environment variable file before running the action’s command. That saves us from needing to have that as a separate step in our shared-workflows workflows, but also means that if our action changes any telemetry-related environment variable, it won’t be reflected in stored metadata.

TODO: Seems like we should move the upload AFTER the action command.

Sending data

Telemetry data is sent from a python script that uses the python OpenTelemetry SDK. Configuration for this SDK is done with environment variables. Defaults are set in the github action that stashes base environment variables, which runs at the start of each root workflow, e.g. rmm.

Debugging

It is helpful to be able to send telemetry to some testing server without running workflows. The general steps are:

  1. Run your own instance of tempo locally. The official example docker-compose configuration works fine.

  2. Download a JSON file of your github actions jobs. These are removed by default when a job finishes, but you can preserve it by re-running a job with debug output. The filename is all_jobs.json. Alternatively, you can fetch it with the Github Actions API.

An example gh cli call that downloads this JSON output:

gh api -H "Accept: application/vnd.github+json" -H "X-GitHub-Api-Version: 2022-11-28" \
    --paginate /repos/rapidsai/cudf/actions/runs/<RUN_ID>/attempts/<RUN_ATTEMPT>/jobs | jq -c '.jobs' > all_jobs.json

Substitute RUN_ID with the value seen in the GitHub web UI for the job that you’re interested in. The RUN_ATTEMPT is usually 1, unless you have retried the job.

  1. Clone the shared-actions repo locally

  2. copy the all_jobs.json file into shared-actions/telemetry-impls/summarize

  3. cd into shared-actions/telemetry-impls/summarize

  4. Set key environment variables

  • Set them on the terminal

    export OTEL_EXPORTER_OTLP_ENDPOINT="http://localhost:4318"
export OTEL_EXPORTER_OTLP_PROTOCOL="http/protobuf"
export OTEL_TRACES_EXPORTER="otlp_proto_http"

  • Use VS Code run configurations

        {
        "name": "send-tempo",
        "type": "debugpy",
        "request": "launch",
        "program": "send_trace.py",
        "console": "integratedTerminal",
        "cwd": "${workspaceFolder}/telemetry-impls/summarize",
        "justMyCode": false,
        "env": {
            "OTEL_EXPORTER_OTLP_ENDPOINT": "http://localhost:4318",
            "OTEL_PYTHON_LOG_LEVEL": "DEBUG",
            "OTEL_EXPORTER_OTLP_PROTOCOL": "http/protobuf",
            "OTEL_TRACES_EXPORTER": "otlp_proto_http"
        }
    },

  1. (optional) Run bump_time.py script to adjust timestamps in your all_jobs.json file. The Grafana UI shows data that is a certain amount of time prior to the present. Not updating timestamps can lead to your data points being too far back in time to show up.

  2. Run send_trace.py. The requirements.txt file is alongside send_trace.py.

Receiving data

Authentication is the biggest complication with receiving data. We use mTLS to allow exposing the Tempo server to the internet without restricting IPs. This means that any server interacting with Tempo needs a set of certificates. It is not viable to manage that for our workers. Instead, we have a FluentBit forwarder that is only accessible to self-hosted runners. Our runners communicate with the FluentBit forwarder without needing authentication, and the FluentBit forwarder is configured with certificates so that it can send the data on to the Tempo instance.

Important reiteration: only our self-hosted runners can send telemetry data. Github-hosted runners will error out.

If you run tempo locally, be sure to adjust Grafana’s datasources.yaml file to point to your desired tempo instance.

Storing data

This is an implementation detail of Tempo. The RAPIDS ops team currently has Tempo backed by S3 to avoid ongoing upkeep requirements of a database server.

Viewing captured data: Grafana dashboards

Dashboard variables

Grafana has something called “dashboard variables,” which serve to select some value for a particular dimension. Using this as the input to the data filters makes it easy to make multiple plots for different values of the variable (e.g. different machine labels or different RAPIDS repos)

There is a gotcha with variables. Grafana has a way of automatically detecting values for variables - the “Query” variable type. This is the same as Tempo’s search tag values API. When it works, it is very convenient. However, it only works on recent data. If your data was collected some time ago, Grafana may fail to populate these fields. Because of this, it is generally worthwhile to use the “Custom” variable type and manually input variable values, instead of relying on Grafana/Tempo detecting them.

While configuring your variable, if you want to show multiple plots with different values of this variable, be sure to check the “Include All Option” checkbox.

When finished defining your variable and its values, click the blue “Save dashboard” in the upper right. If you navigate away from this page without clicking this button, your variable will not be saved.

Queries

Queries provide the data from the data source to the panel/visualization. Queries differ based on the data source being used. Tempo’s queries use TraceQL.

Attributes must be included as selectors in the query, or else they won’t be available for filtering down the line. The TraceQL line can get pretty long:

{} | select(span:duration, name, resource.rapids.labels, resource.service.name, resource.rapids.cuda, resource.rapids.cuda, resource.git.job_url, resource.rapids.py, resource.rapids.gpu, resource.rapids.package_type, resource.rapids.arch, resource.rapids.linux, resource.rapids.driver, resource.rapids.deps,span.sccache.main_process.hit_rate,span.sccache.main_process.miss_rate,span.sccache.main_process.error_rate)

On the right side, take note of the “Repeat options” - this is how you get multiple plots (one per variable value).

On the bottom, take note of the limits and table format. For limits, each trace represents one top-level workflow run. Scale this accordingly, especially if you are looking back far in time. The span limit is less important - you just want this number high enough to capture the largest number of spans for a given trace. It’s fine to set it to a high number, such as 1000 spans. Regarding table format, we are interested in spans, not traces. You will not see the additional metadata columns in the trace table format, because they apply to the spans.

As always, remember to click the upper-right save button after making any changes.

Filtering and grouping data

We store our span data using Grafana Tempo. Tempo allows TraceQL queries for filtering data. In general, there are two parts of a TraceQL query:

  1. The {filter} part, which is used to filter the traces
  2. The select part, which is used to select the metadata fields to return

The query is limited to a certain number of traces and spans per trace, as well as the time range of the query. The maximum time range is 7 days.

The resource-level attributes that are captured can be found in shared-workflows, such as https://github.com/rapidsai/shared-workflows/blob/branch-25.04/.github/workflows/conda-cpp-build.yaml#L117C32-L117C199.

Additional span attributes get added by the python script that uses the OpenTelemetry SDK.

From conda-cpp-build.yaml:

"rapids.PACKAGER=conda,rapids.CUDA_VER=$,rapids.PY_VER=$,rapids.ARCH=$,rapids.LINUX_VER=$"

From wheels-test.yaml

"rapids.PACKAGER=wheel,rapids.CUDA_VER=$,rapids.PY_VER=$,rapids.ARCH=$,rapids.LINUX_VER=$,rapids.GPU=$,rapids.DRIVER=$,rapids.DEPENDENCIES=$"

Filter out docker stuff outside of builds

Part of telemetry setup is providing environment variables that other tools that use OpenTelemetry can use to send spans. These get sent to the aggregator, which may or may not be accessible to the build machine. If the aggregator is accessible, it will be used to send spans. These spans might be useful to you, or they might be noise. To filter them, you can filter by several key attributes.

  • trace:rootName - The name of the root span. In Grafana, this is the “Trace name” column. It is useful to filter both empty values and “moby.*” which comes from docker, and not of interest.
{trace:rootName !~ ""} && {trace:rootName !~ "moby.*"}
  • duration - The duration of the trace. This is the “Duration” column in Grafana. It is useful for filtering spurious values.
{duration>10s && duration<1d}
  • resource.git.job_url - The URL of the job. This is a metadata field that we add, and when this field is empty, it often comes from failed builds that are not of interest.
{resource.git.job_url !~ ""}
  • resource.rapids.labels - These are the labels of the kind of machine that was used for the job. This filter removes “in-between” jobs, such as the matrix computation, and can also distinguish between build and test jobs.

Workers with GPUs will be associated with test jobs

{resource.rapids.labels =~ ".*gpu.*"}

We’ll call any other label “build”

{resource.rapids.labels !~ ".*gpu.*" && resource.rapids.labels !~ ""}

Any of these can be combined, either within one query, or by combining span sets (joining multiple {} sections).

Adding metadata to spans

The default spans returned from Tempo only include barebones native attributes. To access the custom attributes that we use to capture GPU, CUDA version, etc., you can use the select function.

{} | select(span:duration, name, resource.rapids.labels, resource.service.name, resource.rapids.CUDA_VER, resource.git.run_url, resource.rapids.PY_VERSION, resource.rapids.GPU)

Reminder: the values in the select function are scoped. resource is a scope that makes the query faster. You can omit it. However, it may be confusing if you try to use a resource scope on an attribute at the span level. The rapids prefix currently implies resource attributes.

Scope:

  • resource - rapids, git
  • span - sccache, likely built file sizes, ninja build times, etc.

Combining filters and spansets

This is an example of a query that joins filtered spansets, and selects several metadata fields on the resulting spanset.

{duration<1d && duration>10s} && {trace:rootName !~ ""} && {trace:rootName !~ "moby.*"} | select(span:duration, name, resource.rapids.labels, resource.service.name, resource.rapids.CUDA_VER, resource.git.run_url, resource.rapids.PY_VERSION, resource.rapids.GPU)

The returned data here is the foundation of the telemetry dashboard. Beyond the query, the workhorse ideas of the grafana plots are:

  • filtering data such that it matches a given value
  • Using groupby operations to aggregate multiple values of a given type

These are on the Transform tab of the same box where the query was entered.

An example useful set of transforms:

  • Filter data by values
    • matching is not null on the git.job_url is useful for ignoring jobs that were cancelled
  • Filter data by values
    • Regex is useful for matching strings
    • If using a variable, ensure that Grafana is formatting the variable value correctly. The regex formatter is appropriate for escaping annoying characters. If your data filter is not functioning correctly - either not filtering values that should be filtered, or not yielding any results, you probably have the wrong formatter.

  • Group-by is generally useful for averaging or summing multiple values for a given span kind.
    • You can average the span time for all wheel-build-cpp by project to compare the average wheel build time for each project. This would be a good bar chart.
    • You can sum the span time for all usage by machine label to show resource usage. This is particularly useful when combined with filters and dashboard variables to make multiple plots.
    • You may need to transform a column of string labels into an enum field for correct grouping. This is done with the Convert field type transformation

On any chart, Grafana often guesses wrong on the data to display. On the right side of the image above, check the “Value options -> Show”. This often defaults to “Calculate”. It should generally be set to “All values” for our purposes.

Similarly, the “Value options -> Fields” combobox often defaults to “Numeric fields,” but we usually want to point it to a specific field.

  • After a group-by aggregation, Grafana can lose track of the duration in terms of nanoseconds. To compensate for this, add an “Add field from calculation” transformation. You can divide nanoseconds by 60E9 to obtain minutes. Keep in mind that this is adding a new column, not altering the old one. You’ll need to select the new column in the “Value options -> Fields” combobox.
